Specifications: diameter: 320 to 127 mm thickness: 0.4 to 12.7 mm Length: 6 m above, and, in accordance with customer demand, supply and other specifications of steel pipe

SA213 T91,A335 P91 Alloy Boiler Pipe


ASTM A213 Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exnger Tubes

ASTM A335 Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service

ASME/ ASTM A335 P9/ A213 T9 / Cr9Mo (STFA26 STPA26 STBA26 T9 P9)12Cr1MoV
ASTM A335 P91

Spec Grade O.D. W.T. Pcs Weight T Length(M)
SA213 T91 A335 P91 16.00 3.00 360 3.10 6-11.5
SA213 T91 A335 P91 18.00 4.00 214 2.38 5-7
SA213 T91 A335 P91 22.00 7.00 171 3.57 7-9
SA213 T91 A335 P91 25.00 7.00 179 4.48 6-8
SA213 T91 A335 P91 28.00 3.50 168 2.86 5-6.5
SA213 T91 A335 P91 28.00 4.00 142 2.71 5-6.5
SA213 T91 A335 P91 28.00 5.00 105 2.40 5-6.5
SA213 T91 A335 P91 32.00 6.00 231 7.16 5-6.5
SA213 T91 A335 P91 32.00 7.00 232 8.06 5-7
SA213 T91 A335 P91 32.00 8.00 162 6.18 8.02-10.71
SA213 T91 A335 P91 34.00 6.50 146 5.18 5.5-5.9
SA213 T91 A335 P91 33.00 9.00 152 6.52 9.08-11.42
SA213 T91 A335 P91 34.00 12.00 96 5.03 6.4
SA213 T91 A335 P91 38.00 4.00 84 2.27 7-9
SA213 T91 A335 P91 38.00 5.00 141 4.62 9.58-11.62
SA213 T91 A335 P91 38.00 5.50 108 3.83 7-8
SA213 T91 A335 P91 38.00 6.00 144 5.49 7-8
SA213 T91 A335 P91 38.00 8.00 243 4.86 7-8
SA213 T91 A335 P91 38.00 9.14 141 7.21 12
SA213 T91 A335 P91 38.00 10.00 162 8.82 8-10
SA213 T91 A335 P91 41.30 4.00 82 2.41 8
SA213 T91 A335 P91 41.30 7.00 98 4.63 12.05
SA213 T91 A335 P91 41.30 11.00 131 8.59 6-11.5
SA213 T91 A335 P91 48.00 4.00 18 1.69 6-10
SA213 T91 A335 P91 51.00 4.00 20 1.26 12
SA213 T91 A335 P91 51.00 7.50 36 2.33 9
SA213 T91 A335 P91 51.00 8.00 38 2.73 7-10
SA213 T91 A335 P91 51.00 12.00 62 5.76 4.37
SA213 T91 A335 P91 51.00 13.00 35 3.34 8
SA213 T91 A335 P91 51.00 14.00 10 0.86 5.8-7.2
SA213 T91 A335 P91 54.00 4.00 114 4.53 10
SA213 T91 A335 P91 54.00 8.50 82 6.30 11
SA213 T91 A335 P91 54.00 9.00 51 4.10 3.8-7
SA213 T91 A335 P91 54.00 10.00 29 2.53 12
SA213 T91 A335 P91 54.00 13.00 36 3.81 8.5-9.21
SA213 T91 A335 P91 57.00 9.00 29 2.49 10-11.4
SA213 T91 A335 P91 57.00 10.00 46 4.30 6-10
SA213 T91 A335 P91 57.00 13.00 110 12.50 8
SA213 T91 A335 P91 57.00 14.00 56 7.65 4.2-5.64
SA213 T91 A335 P91 57.00 15.00 91 11.39 9
SA213 T91 A335 P91 60.30 8.74 1 0.26 6.01
SA213 T91 A335 P91 60.00 9.00 55 4.05 8
SA213 T91 A335 P91 60.00 10.50 62 6.16 7
SA213 T91 A335 P91 60.00 12.00 53 3.97 6-8
SA213 T91 A335 P91 42.00 3.50 93 2.57 11
SA213 T91 A335 P91 42.00 4.50 151 5.06 8-9
SA213 T91 A335 P91 42.00 5.00 173 7.10 8-12
SA213 T91 A335 P91 42.00 6.00 83 2.60 8-9
SA213 T91 A335 P91 44.50 5.00 59 2.29 8-9
SA213 T91 A335 P91 45.00 7.00 68 3.59 12
SA213 T91 A335 P91 44.50 7.50 51 2.77 7-9
SA213 T91 A335 P91 44.50 8.00 45 3.08 8-11
SA213 T91 A335 P91 44.50 10.00 63 4.25 9-
SA213 T91 A335 P91 44.50 11.00 86 6.20 7-9
SA213 T91 A335 P91 45.00 4.00 29 0.98 7-9
SA213 T91 A335 P91 45.00 7.00 31 2.35 12
SA213 T91 A335 P91 45.00 8.00 72 4.29 10- 12
SA213 T91 A335 P91 45.00 9.00 81 5.21 11.71-12
SA213 T91 A335 P91 45.00 10.00 118 7.65 8-12
SA213 T91 A335 P91 45.00 12.00 83 6.53 9.5
SA213 T91 A335 P91 45.00 13.00 76 6.28 8.03-8.41
SA213 T91 A335 P91 48.00 6.50 52 2.84 7-9
SA213 T91 A335 P91 48.00 7.14 82 4.67 8-12
SA213 T91 A335 P91 48.00 7.50 124 7.48 7-12.03
SA213 T91 A335 P91 48.00 9.00 56 3.81 11-12
SA213 T91 A335 P91 48.00 10.00 49 3.68 7-9
SA213 T91 A335 P91 48.00 11.50 16 1.60 10-11
SA213 T91 A335 P91 63.00 4.00 18 0.73 6-8
SA213 T91 A335 P91 63.00 5.00 13 0.65 6-8
SA213 T91 A335 P91 66.00 5.00 29 1.76 10-12
SA213 T91 A335 P91 70.00 8.00 72 8.81 8
SA213 T91 A335 P91 70.00 16.00 1 0.12 8.47
SA213 T91 A335 P91 76.00 4.50 1 0.09 8
SA213 T91 A335 P91 76.00 6.00 2 0.10 8.47
SA213 T91 A335 P91 76.00 18.00 29 4.12 6-6.8
SA213 T91 A335 P91 89.00 6.50 37 3.94 5.26-5.86
SA213 T91 A335 P91 89.00 20.00 12 3.29 6
SA213 T91 A335 P91 102.00 7.50 32 4.51 6.95
SA213 T91 A335 P91 108.00 12.70 22 5.03 6.65
SA213 T91 A335 P91 114.30 22.00 10 4.40 8.7-10
SA213 T91 A335 P91 140.00 6.00 12 1.92 10
SA213 T91 A335 P91 140.00 7.00 12 2.22 8-10
SA213 T91 A335 P91 140.00 10.00 18 4.47 6-10
SA213 T91 A335 P91 159.00 25.00 13 8.65 6.45
SA213 T91 A335 P91 168.00 30.00 9 6.58 7.47-8.31
SA213 T91 A335 P91 219.00 9.00 11 4.13 9.5-10.15
SA213 T91 A335 P91 273.00 45.00 4 8.06 7.47-8.31
SA213 T91 A335 P91 457.00 16.00 2 2.80 6.75-7.71

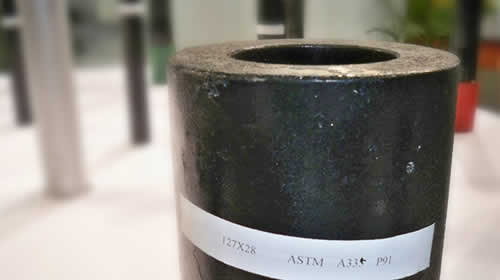

ASTM A335 P91 pipes
