SSAW Pipe: Spiral welded pipe used for the oil and gas transmission and pipe pile etc.

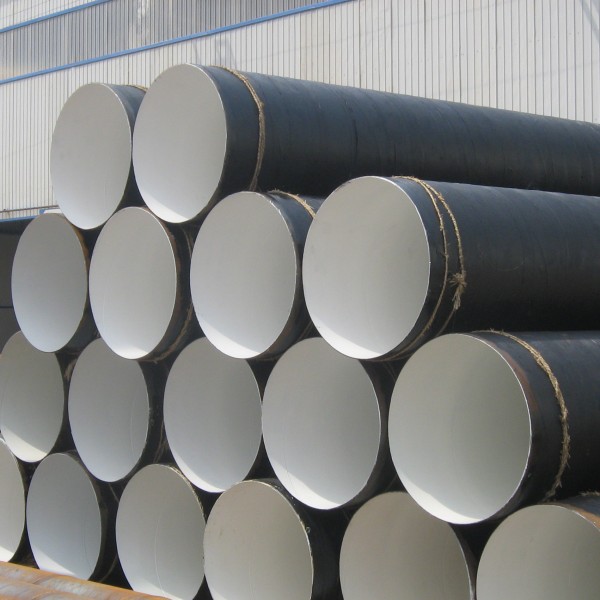

SSAW Pipe - Spiral Submerged Arc Welded Pipe

spiral line pipe from a premium quality supplier is of a quality equivalent to straight seam welded pipe, and it has been used extensively in Canada and Europe for high pressure gas pipelines in grades up to API X70.

ssaw pipe


Process



Usage

Standard

Certificate

Out Diameter

Wall Thickness

Length

Steel Grade

Surface

Test

Certificates

Spiral Submerged- Arc Welded Steel Pipe



Usage: Gas lines,Oil lines,Hot water lines,Sewage lines,Civil engineering and structural purposes

API 5L, API 5CT, ASTM A252, ASTM 53, EN10217, EN10219, BS, JIS, IS

EN10217, EN10219, API 5L PSL1/ PSL2, API 5CT



219.1 mm – 2540mm (8"-100")


3.2mm - 25.4mm



6 – 22 m



API 5L: GR A, GR B, X42,X46, X56, X60,X65,X70
ASTM A252 GR 1, GR 2, GR 3
ASTM A53: GR A, GR B, GR C, GR D
BS 4360: Grade 43, Grade 50
EN: S275, S275JR, S355JRH, S355J2H


Anti-rust, Galvanized, Epoxy Resin, 3PE or Acc to Customers’ Requirement



100% NDT (Non-destructive Testing)
Visual and Optical Testing (VT)
X-ray Industry TV Inspection and Image Control System (RT)
Manual Ultrasonic Testing and Off-line Ultrasonic Testing (UT)
Magnetic Particle Testing (MT)
100%Hydrostatic Testing
Chemical Composition Testing
Mechanical Capacity Testing (Yield Strength, Tensile Strength,
Elongation Value, Hardness Value and Charpy Impact Value)


API 5L PSL1,PSL2 , API 5CT, ISO ,CE,EN 10204/3.1B
ISO9001:2008, ISO14000:2004



SSAW PIPE WALL THICKNESS (mm)

SSAW PIPE WALL THICKNESS

SSAW steel pipe

SSAW steel pipesSSAW Pipe - Spiral Submerged Arc Welded Pipe.

1. We produce pipes ourselves
2. OD: 219-2420mm, WT: 5-30mm, Length of Pipe: 3-18m
3. Certificate: API 5L & ISO
