Specifications: diameter: 320 to 127 mm thickness: 0.4 to 12.7 mm Length: 6 m above, and, in accordance with customer demand, supply and other specifications of steel pipe

SCH 80 Galvanized Steel Pipe

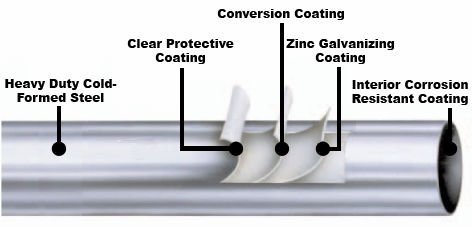

Galvanized steel pipe uses fine welded pipe and advanced galvanizing epuipment and technique with smooth finish, high corrosion resistance and pressure resistance.

It is widely used in the construction, pipe of industrial,water pipe, plastic-steel doors and windows, fence equipment,telecommunication tubes as well as greenhouse tubes for different planting and breeding business.

SCH 80 Galvanized Steel Pipe

schedule 80 pipe

1).W.T:0.5-6.0mm
2).O.D:20-165mm
3).length:4-14m

Schedule 80 Pipe

Type

Schedule 80 Galvanized Pipe

Outer diameter

DN15 DN20 DN25 DN32 DN40 DN50 DN65 DN80 DN100 DN125 DN150

1/2" 3/4" 1" 11/4" 11/2" 2" 21/2" 3" 4" 5" 6"

20mm 25mm 32mm 42mm 47mm 60mm 76mm 88mm 114mm 140mm 165mm

Wall thickness

0.5-6.0mm

Length

4-14m

Standard

GB/T3091-2001, ASTM A53 , BS1387-1985

Material

Q195,Q215,Q235,Q345

Zinc-coating

60-120 grams per square meter

Packing

Standard export packing or as request

Productivity

6000T/M
