Specifications: diameter: 320 to 127 mm thickness: 0.4 to 12.7 mm Length: 6 m above, and, in accordance with customer demand, supply and other specifications of steel pipe

X60 steel pipe,API 5L X60 pipe


1.Type: SSAW/BUTT WELDED/SEAMLESS steel pipe

2.Standard: API 5L
3.Size:1/2"~72"
4.Wall Thickness:SCH10~XS

Product :  Steel Pipe API 5L Grade X60 / Spiral Welded Pipes API 5L X60 PSL1 PSL2

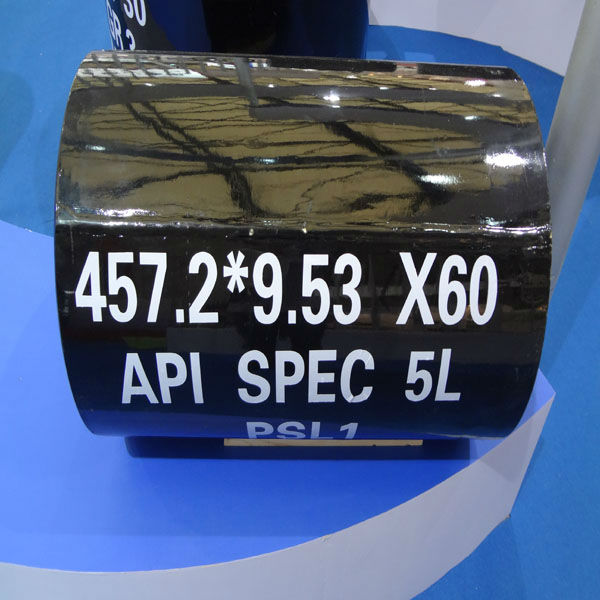

X60 steel pipe,API 5L X60 pipe 457.2*9.5

1. Standard : ASTM A53 / API 5L

2. Material :  Gr.X62/X60

3. Size: 1/2"~72"

4. Wall Thickness: 6mm~20mm

5. Delivery condition : Hot-finished

6. Pipe End: Plain end below 2" ,Bevelled end above 2"

7. Application :  Pipes are intended for mechanical and pressure applications, as well as ordinary uses in steam,water, gas and airlines .



API 5L X60 PSL 1 Welded pipe

C Mn P S V Nb Ti
maxb max.b min. max. max. max. max. max.
0.26e 1.40e - 0.03 0.03 f f f


API 5L X60 PSL 1 Seamless pipe

C Mn P S V Nb Ti
maxb max.b min. max. max. max. max. max.
0.28e 1.40e - 0.03 0.03 f f f

Mechanical requiremnts of API 5L X60 PSL1

Y.S Mpa(psi) T.S Mpa(psi) ELONGATION
min min min
320 (46 400) 435 (63 100) 28%



API 5L pipes tolerances

API 5L pipe tolerances



NEW SINDA PIPE:API 5L Gr.B seamless steel pipe OD 273.1 mm W.T 9.27mm material :Gr.B ,X42 to X 65 standard: API 5L
