Carbon Steel Elbow weight formula




Carbon Steel Elbow weight formula

Ring volume = 2X3.14X3.14 (r ^ 2) R
  r - radius circle
  R - radius of gyration of the ring
  Hollow tube ring volume = 2X3.14X3.14 ((r ^ 2) - (r '^ 2)) R
  r'- circle radius of the inner circle
  90,60,45 degree elbow (elbow), respectively corresponding to the volume of the hollow tube ring volume of 1/4, 1/6, 1/8.
  The density of steel engineering calculations by weight 7.85 kg / dm, density X volume = weight (mass).

1,180 ° Elbow calculated according to Table 2-fold, 45 ° at 1/2 calculation;
  2, R1.0DN elbow weight according to Table 2/3 of the calculation;
  3, the wall thickness is not listed in the table weight, preferably with similar two weight averages;
  4,90 ° elbow formula; 0.0387 * S (DS) R/1000 where S = thickness mm D = diameter mm R = bending radius mm


 Carbon Steel Elbow

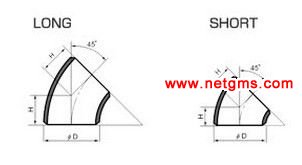

  Long radius (R=1.5D)    Short radius(R=1D)

CARBON STEEL ELBOW

Degree: 45D,90D,180D,LR or SR

Size :1/2"-48"

Schedule:SCH20-SCH160. XXS

Material: Carbon Steel:  ASTM, A234, WPB, A420, WPL3, A420, WPL6, MSS-SP-75, WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70

            Stainless Steel:  ASTM, A403, WP304, 304L, 304H, 316, 316L, 317, 317L, 321, 310, 347, 904L

             Alloy Steel:  ASTM A234 WP1, WP5, WP9, WP11, WP22, WP91

STANDARDS:ANSI, ISO, JIS, DIN, BS,GB, SH, HG,QOST,ETC.
