Specifications: diameter: 320 to 127 mm thickness: 0.4 to 12.7 mm Length: 6 m above, and, in accordance with customer demand, supply and other specifications of steel pipe

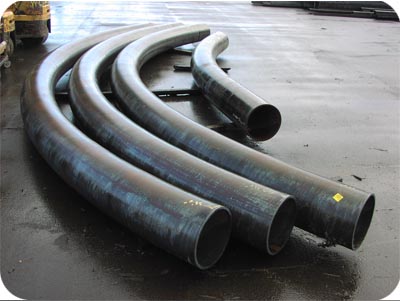

Carbon Steel Bend Elbow

Pipe Bend Elbow

 R=1D To 10D  From 1/2" to 72" With Seamless And Welded

A234/A53 WPB B16.9/B16.25/B16.49


Seamless bend: 1/2"~24" DN15~DN600

ERW Welded Pipe with Q235B Q345B 16Mn API 5L X42/X52/X60/X70

Carbon Steel Bend Elbow

Welding bend: 6"~60" DN150~DN1500

SPRIAL Pipes with Q235B Q345B 16Mn API 5L X42/X52/X60/X70


 LSAW pipe bend and SSAW piep bend

Wall Thickness
Sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100,
Sch120, sch140, sch160, xxs, sch5s, sch20s, sch40s, sch80s
Max. seamless pipe Wall thickness: 200mm

Carbon steel: ASTM/ASME A234 WPB-WPC
Low temperature steel: ASTM/ASME A402 WPL 3-WPL 6
High performance steel: ASTM/ASME A860 WPHY 42-46-52-60-65-70
steel bend

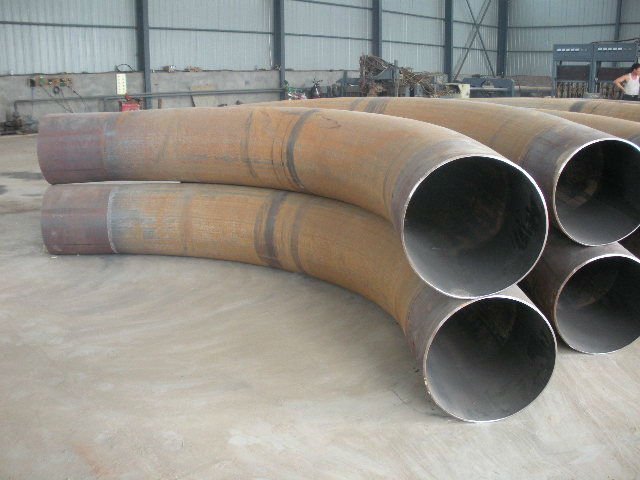

Carbon Steel Bend Elbow

Specifications for Pipe Bend


Production range

Seamless bends

Welding bends

Outside diameter



Wall thickness


Bending radius


Product angle



DL/T515-2004 GD2000 GD87-1101
ASME B16.49-2007 ASME B16.25-2007
Industrial Processes "Bending, squeezing, pressing, forging, machining and more
Industries Served :Our pipe bends are widely used in many industries, such as power generation, petroleum, natural gas, chemicals, shipbuilding, construction, papermaking, metallurgy and so on.

Bending radius  (R)   R=1.5D, 2D, 3D, 4D, 5D, 6D, 7D, 8D, 9D, 10D etc.
Bending angles (θ ) 15° 22.5° 30° 45° 60° 90° 135° 180° manufacture according to the client’ s requirement
Straight lenght (L) The length between two ends general from 300mm-1500mm,
and also can produce according to  the clients' requirement.
Outer diameter(D) Up to 1620mm
Wall thickness (T) T≤ 120mm
End belvel according to the bevel of welding pipe fittings construction, or flange connection
weight [0.0433(D-T)TRθ ]/100000+L(the weight of two ends straight bend)
