Specifications: diameter: 320 to 127 mm thickness: 0.4 to 12.7 mm Length: 6 m above, and, in accordance with customer demand, supply and other specifications of steel pipe

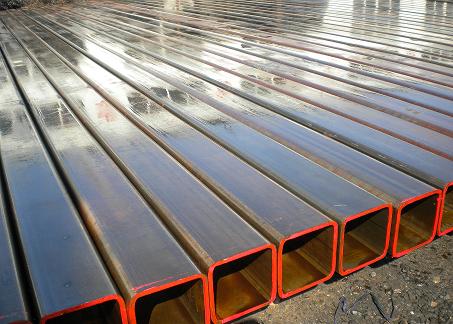

Carbon Steel Square Pipes


Carbon Steel Square Tubes

Application:

It is widely used in building, machine, chemical equipment, automobile industrial, container, it is also applied to agriculture and mine machine.

Standard:

ASTM A500, GB6728

Carbon Steel Square Pipes



Steel grade:

ASTM A500: A, B, C

GB6728:Q195,Q215,Q235,Q345

Standard: ASTM A500



Chemical Composition(%)



Chemical Requirement



Composition %



Grade A

Grade B



Heat

Product

Heat

Product

Element

analysis

analysis

analysis

analysis

Carbon max

0.26

0.3

0.22

0.26

Manganese max

1.4

1.45

Phosphorus, max

0.035

0.045

0.03

0.04

Sulfur max

0.035

0.045

0.02

0.03

Copper, when copper steel is specified, min

0.20

0.18

0.2

0.18

Where an ellipsis (...)appears in this table, there is no requirement

For each reduction of 0.01 percentage point below the specified maximum for carton,
and increase of 0.06 percentage point above the specified maximum for manganese
is permitted, up to a maximum of 1.50% by heat analysis and 1.6% by product analysis



GB6728:



SteelGrade

CHEMICAL COMPOSITION

MECHANICAL PROPERTIES







C (%)



Si (%)



Mn



(%)







P(%)







Max





 (%)







Max







YS(Mpa)







Min







TS(Mpa)







Min







El (%)







Min



Q195



.06-0.012

0.3

0.25-0.5

0.45

0.5

195

315

22



Q215

0.09-0.15

0.3

0.25-0.55

0.45

0.5

215

335

22



Q235



0.12-0.22



0.3







0.3-0.7







0.45







0.45







235







375







20



Q345



0.20



0.55

1.0-1.6

0.45

0.45

345

510



21

Mechanical Properties



Tensile Requirement



Grade A

Grade B

Tensile strength, min, psi (Mpa)

48000 (400)

70000 (483)

Yield strength, min, psi (Mpa)

36000 (250)

50000 (345)

Elongation in 2 in. (50.8mm), min, %

23

23
