Specifications: diameter: 320 to 127 mm thickness: 0.4 to 12.7 mm Length: 6 m above, and, in accordance with customer demand, supply and other specifications of steel pipe

5" petroleum Oil pipe


Material:J55,K55,N80,L80,P110,
Thread:STC,LTC,BTC
API 5DP 2-7/8"to 5" steel pipe
Standard:API /ISO
OD:from 2-3/8'' to 5''
Wall Thickness:5.59-12.70mm
Length:R1 R2 R3

5" petroleum Oil pipe

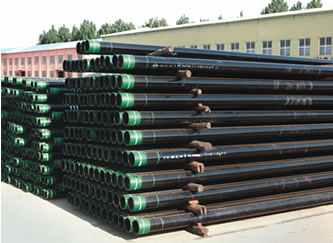

API 5CT  5'' oil casing pipe

Size  OD  WT Grade Thread Length
mm In mm In
Inch In In




5" 127 5.000 5.59 0.220 J55,K55,N80,L80,P110 BTC,LTC,STC R1,R2,R3
5" 127 5.000 6.43 0.253  ^  ^
5" 127 5.000 7.52 0.296  ^  ^
5" 127 5.000 9.19 0.362  ^  ^
5" 127 5.000 11.1 0.437  ^  ^
5" 127 5.000 12.14 0.478  ^  ^  ^
5" 127 5.000 12.7 0.500  ^  ^  ^

all kinds of casing pipes.
