Specifications: diameter: 320 to 127 mm thickness: 0.4 to 12.7 mm Length: 6 m above, and, in accordance with customer demand, supply and other specifications of steel pipe

9 5/8" Oil Casing pipe - BTC LC STC




1..Size:114.3-508 mm
2.Grade: J55, K55, N80, L80-1, L80-9Cr, L80-13Cr, C90, T95, P110, P110-13Cr, Q125



Tubing pipe
J55 K55 L80 N80 P110
114.3mm X 6.35mm R3 BTC Marking
Used for well, oil, gas and other industry.

Casing:
standard:API 5CT
grade:H40/J55/K55/L80/N80/P110
thread: BTC/LC/STC
OD:4 1/2"-20"
W.T:5.12-22.22mm
9 5/8" Casing pipe
Tubing:

standard:API 5CT

grade:H40/J55/K55/L80/N80/P110
thread:EUE/NU
OD:2 3/8"-4 1/2"
W.T:4.24-16.00mm

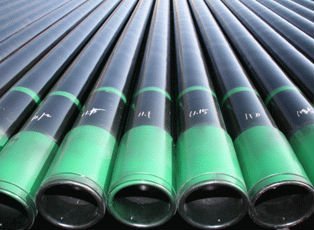

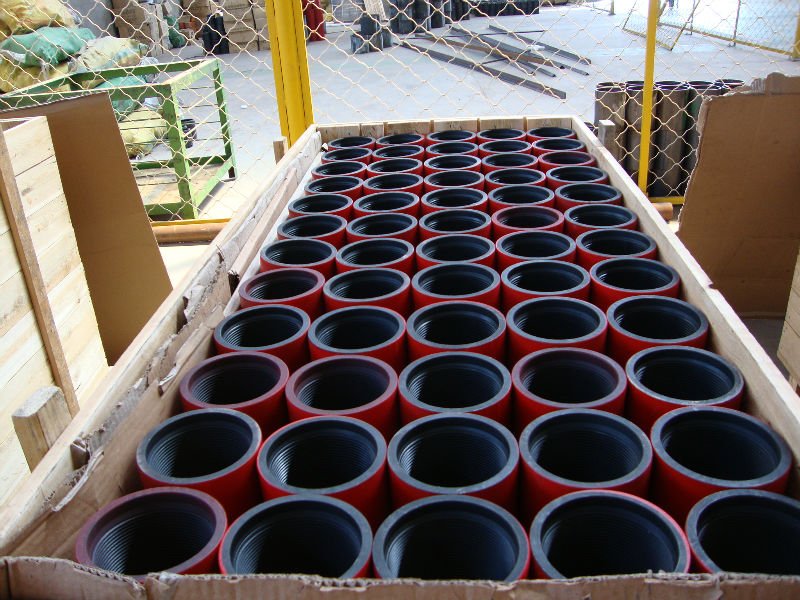

SOME PICTURE OF OUR CASING AND TUBING

CASING AND TUBING

Seamless Casing 9 5/8"

We supply all seamless and ERW casing pipes according to API Spec 5CT latest edition.

Grades: H40, J55, K55, N80, L80, HC N80, C90, T95, P110, HC P110.
The outer diameter of casing is ranging from 4 1/2" to 20". 30” conductor with plain ends or fast connection is also available.

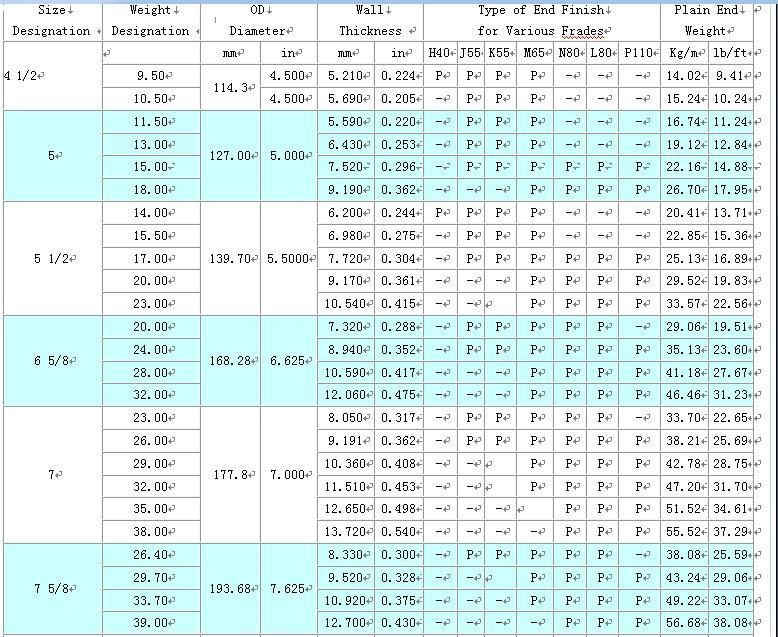

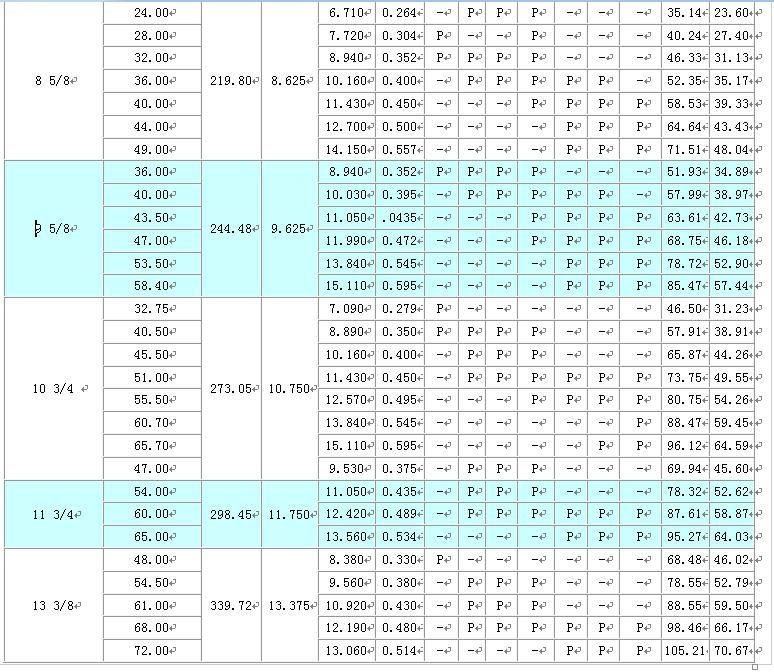

casing pipe specifications Oil casing pipe specifications
